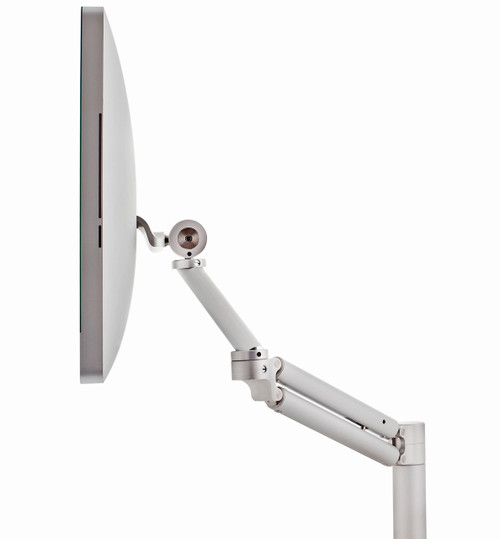

Mantis 30

Product Description

Silky smooth movement for your 27" iMac or large multimedia display.

The Mantis 30 is revolutionizing the way we move and use larger multimedia displays. Our gas cylinder and braking system work together to insure your monitor moves smoothly with finger tip control and it stays where you leave it. We have used only the highest quality materials and CNC technology to provide you with a perfectly engineered masterpiece that will last a lifetime. This arm works magically with large PC monitors, Apple displays and iMac computers.

Float Your Large Display

The Mantis 30 provides a huge range of vertical and horizontal movement and it can be desk mounted or wall mounted to match your needs perfectly. Our Mantis 30 will float large displays effortlessly over any work station to help increase workplace ergonomics and reduce desk clutter. *The NEW 27 inch Machead MUST be installed by an Apple tech who is ACMT certified, please call for details.

Mantis 30 Assembly Guide

Product Specifications

Joints	Gas assisted monitor arm
Material	Machined from 60-61 T6 billet aluminum
Screen Tilt	Variable tension adjustable head
Vesa	Removable 75/100 interface plate
Mac	Machead adapter available for iMacs & Apple Cinema LED Displays
Capacity	Supports large multimedia displays from 10-16kg (22-35lbs)
Range	Maximum reach of 529mm (20.8in)

Mount Details

Large Edge Clamp

The Large Edge Clamp can be clamped onto desks from 30mm (1 1/4") to 51mm (2") thick. The clamp is adjustable using a 5 mm allen key to fit your desk thickness perfectly and extends 4 1/4" onto the desk.

Cable Grommet

If you have a work surface with an existing cable grommet then this post can be used. Simply remove the grommet from your work surface and replace with the post ensuring that the hole is covered by the new grommet plate.

Through Desk Mount

The Through-desk mounting solution is our strongest mount. This can be installed by simply drilling a 13 mm (0.5") diameter hole in the required surface or fit through an existing hole up to 40 mm (1.5") diameter.

Single Stud Wall Mount

The single stud wall mount is useful to mount a display or iMac directly to a wall to help remove desktop clutter.

Puck For Rail Mount ( Puck Only )

The Puck slides in an aluminum extrusion and can be mounted both vertically and horizontally. The arm can then slide to any desired location by sliding the puck along the rail. ** Please let us know if the Rail is mounted Vertically or Horizontally on the wall.

Adapter Details

Vesa Plate Small Spigot

The standard Vesa plate with small Spigot is designed to fit a variety of standard monitors, displays and TVs. The hole pattern works for both the 75mm x 75mm vesa and 100mm x 100mm vesa.

19 - 21.5" iMac Adapter

For the Sidewinder. Our MacHeads are designed to work perfectly with Apple's iMac computers. These adapters give you perfect tilt control over your 19" or 21.5" iMac mounted on one of our monitor arms.

** imac stand has to be removed and our machead installed by an Apple technician who is ACMT certified. Please call for details.

MacHead Large Spigot for 24" or 27" iMacs

Our MacHeads are designed to work perfectly with Apple's iMac computers. These adapters give you perfect tilt control over your 27" iMac mounted on one of our monitor arms.

MacHead Large Spigot for NEW 27" iMacs (late 2012)

Our MacHeads are designed to work perfectly with Apple's iMac computers. These adapters give you perfect tilt control over your 27" iMac mounted on one of our monitor arms.

** Late 2012 imac stand has to be removed and our machead installed by an Apple technician who is ACMT certified. Please call for details.
